SA40

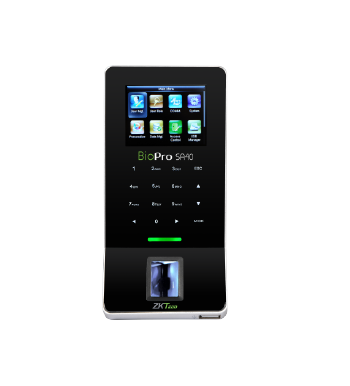

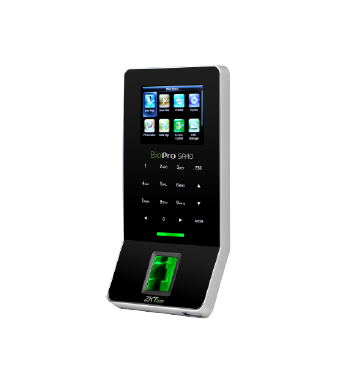

BioPro SA40 is an ultra-thin fingerprint time attendance and access control terminal with BioID sensor and Wi-Fi, which offers unparalleled performance with an advanced algorithm for reliability, precision, and excellent matching speed. BioPro SA40 features the fastest commercial-based fingerprint matching algorithm and ZK high-performance, high-image quality infrared detection fingerprint sensor.

BioPro SA40 provides a superior touching experience with touch keypad and offers flexibility for standalone installation or with any third-party access control panel that supports standard wiegand signal. TCP/IP, RS485, and Wi-Fi are also available that the device can be used in different networks.


  • 2.4-inch TFT color screen and Touch keys
  • Ultra thin and elegant design
  • Full Access Control Features: Anti-passback, access control interface for 3rd party electric lock, door sensor, exit button, alarm
  • Standard Wi-Fi
  • Network interface by TCP/IP or RS485
  • Built-in auxiliary input with enhanced flexibility to link with wired detector or emergency switch
  • Multiple Verification Modes: Multi-verification methods (card is optional) providing user various choices



Display

2.4-inch TFT LCD Color Screen

Fingerprint Capacity

3000

Card Capacity

5000(Optional) ID or mifare card

Transaction Capacity

30,000

Sensor

BioID Sensor/ SilkID Sensor (optional)

Algorithm Version

ZKFinger VX10.0

Communication

RS232/485, TCP/IP, USB-host,Wi-Fi

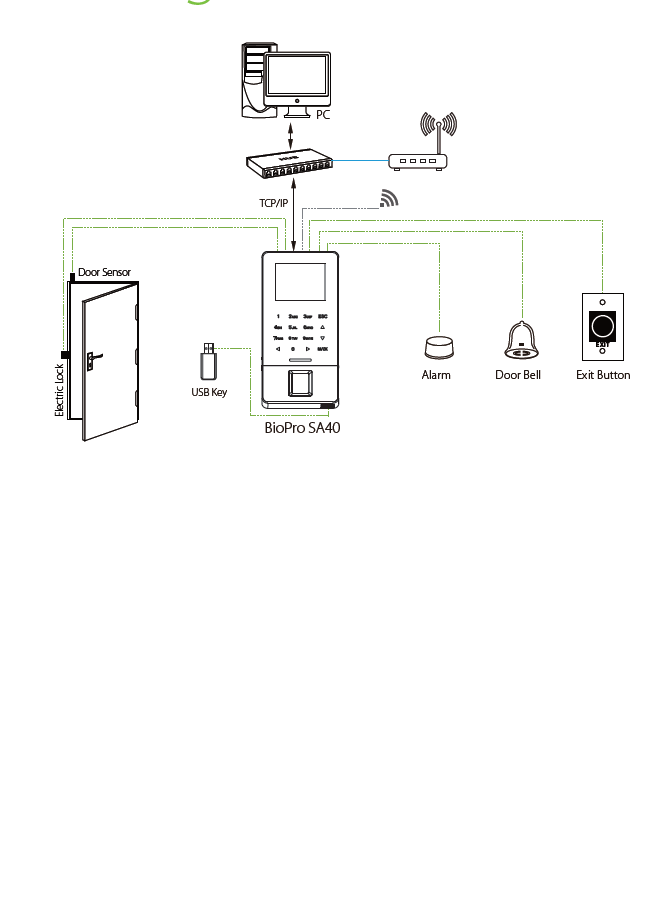

Access Control Interface

3rd Party Electric Lock, Door Sensor, Exit Button, Alarm

Wiegand Signal

Input, Output

Aux. Input

1ea for linkage function

Functions

DST, Automatic Status Switch, Record query, T9 input, 14 digit user ID, Anti-passback, Scheduled-Bell, ADMS, Printer(Optional)

Power Supply

12V DC,3A

Operating Temperature

0 °C- 45 °C

Operating Humidity

20%-80%

Dimension(LxWxH)

159.8x80.7x19.4mm



a35be0184172d571b1870a5742e0f733

  • BioPro SA40 Wifi Access Control Terminal User Manual - User Manual
  • BioPro SA40 - SA40
