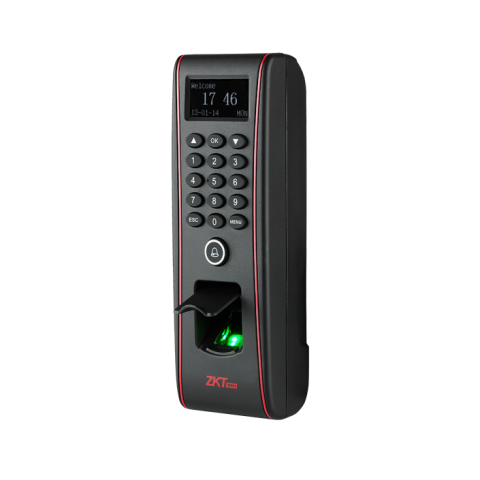

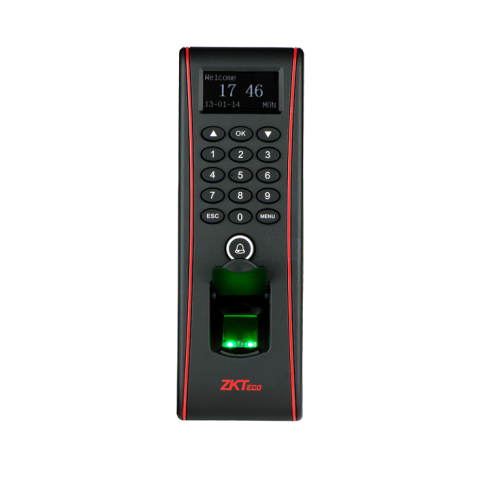

TF1700
- Rugged Structure for Outdoor Installation and Extra Durability
- Full Access Control Features
- Easy Operation and Management
Feature |
|
Fingerprint Sensor |
Infrared detection fingerprint sensor |
Algorithm Version |
ZK Finger VX10.0 |
Communication |
TCP/IP, RS485, USB Host |
Fingerprint Capacity |
3,000 Fingerprints(8,000 Optional) |
Card Capacity |
10,000 Cards |
Log Capacity |
50,000 Transactions |
RF Card |
EM(standard)/Mifare(optional) |
Authentication |
Finger/PIN/Card |
Wiegand Signal |
Wiegand input&output |
Ingress Protection Rate |
IP65 |
Display |
128 x 64 OLED |
Keypad |
3 x 5 keypads & doorbell |
Sound and Interface |
Buzzer and multi-color LED |
Operating Voltage |
12VDC 3A |
Operating Temperature |
-10 °C~50 °C (14°F ~ 122°F) |
Dimension |
62.5mm×185mm×41.5mm (W×H×D) |
- TF1700 Installation Guide - Installation guide
- F1700 Data Sheet - Datasheet
