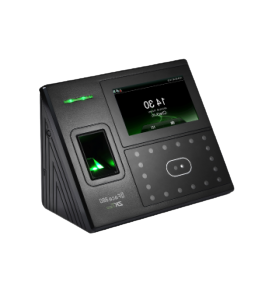

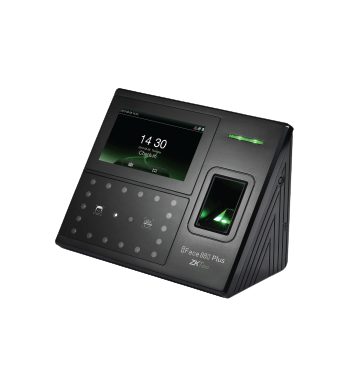

iFace880 plus
- Multi-Biometric
- Time Attendance and Access Control Terminal
iFace880 facial multi-biometric time & attendance and access control terminal supports up to 3,000 face templates, 4,000 fingerprint templates and 10,000 cards.
With ZKTeco latest hardware platfrom and algorithm, it offers brand new UI and user-friendly operation interface to provide smooth user experience.
With advanced face algorithm and multi-biometric verification technology, the terminal's security level of verification is significantly enhanced.
- 3,000 face and 4,000 fingerprint templates
- Multi-language
- High verification speed
- Advanced and user-friendly UI
- Optional built-in battery backup, providing approximately 4 hours of continuous operation
- New Framework firmware, easy to extend functions and customize client’s requirements
- One face template is registered for one user only
- Able to detect whether the face is an actual face or a photo, enhancing the security level of verification
|
Specifications |
SpeedFace-V5L |
SpeedFace-V5L[P] |
SpeedFace-V5L[TD] |
|
Display |
5-inch Touch Screen |
5-inch Touch Screen |
5-inch Touch Screen |
|
Resolution |
1280 x 720 px |
1280 x 720 px |
1280 x 720 px |
|
Face Capacity |
6,000 |
6,000 |
6,000 |
|
Palm Capacity |
/ |
3,000 |
3,000 |
|
Fingerprint Capacity |
6,000 (Standard); 10,000 (Optional) |
6,000 (Standard); 10,000 (Optional) |
6,000 (Standard); 10,000 (Optional) |
|
Card Capacity |
10,000 |
10,000 |
/ |
|
Transactions |
200,000 |
200,000 |
200,000 |
|
Operation System |
Linux |
Linux |
Linux |
|
Standard Functions |
ID Card, ADMS, T9 Input, DST, Camera, 9-digit User ID, Acess Levels, Groups, Holidays, Anti- passback, Record Query, Tamper Switch Alarm, Multiple Verify Modes, QR-code ZKBioSecurity Software |
ID Card, ADMS, T9 Input, DST, Camera, 9-digit User ID, Acess Levels, Groups, Holidays, Anti- passback, Record Query, Tamper Switch Alarm, Multiple Verify Modes, QR-code ZKBioSecurity Software |
Body Temperature Measurement and except for ID Card, else functions is the same as the left. |
|
Hardware |
900MHz Dual Core CPU, Memory 512MB RAM / 8G Flash, 2MP WDR Low Light Camera, Adjustable Light Brightness LED |
900MHz Dual Core CPU, Memory 512MB RAM / 8G Flash, 2MP WDR Low Light Camera, Adjustable Light Brightness LED |
900MHz Dual Core CPU, Memory 512MB RAM / 8G Flash, 2MP WDR Low Light Camera, Adjustable Light Brightness LED |
|
Communication |
TCP/IP, WiFi (Optional), Wiegand input / output, RS485 |
TCP/IP, WiFi (Optional), Wiegand input / output, RS485 |
TCP/IP, WiFi (Optional), Wiegand input / output, RS485 |
|
Access Control Interface |
3rd Party Electric Lock, Door Sensor, Exit Button, Alarm output, Auxiliary Input |
3rd Party Electric Lock, Door Sensor, Exit Button, Alarm output, Auxiliary Input |
3rd Party Electric Lock, Door Sensor, Exit Button, Alarm output, Auxiliary Input |
|
Optional Function |
13.56MHz IC Card (MF) |
13.56MHz IC Card (MF) |
/ |
|
Facial Recognition Speed |
≤1s |
≤1s |
≤1s |
|
Biometrics Algorithms |
ZKFace V5.8 & ZKFinger V10.0 |
ZKFace V5.8 & ZKFinger V10.0 & ZKPalm V12.0 |
ZKFace V5.8 & ZKFinger V10.0 & ZKPalm V12.0 |
|
Power Supply |
12V 3A |
12V 3A |
12V 3A |
|
Operating Humidity |
10% - 90% |
10% - 90% |
10% - 90% |
|
Operating Temperature |
-10 °C - 45 °C |
-10 °C - 45 °C |
-10 °C - 45 °C |
|
Dimensions (W*H*D) |
91.93*202.93*21.5mm |
91.93*202.93*21.5mm |
91.93*220*22.5mm |
|
Supported Softwares |
ZKBioAccess, ZKBioSecurity |
ZKBioAccess, ZKBioSecurity |
ZKBioAccess, ZKBioSecurity |
- iFace 880 plus Datasheet -Datasheet
