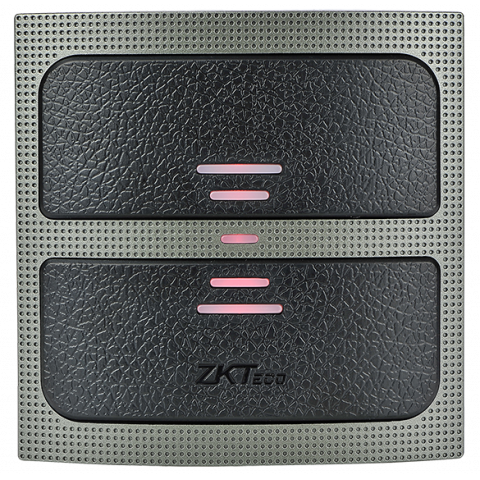

KR501EL

  • LEGIC SM4200 chip
  • IP65 Waterproof
  • Wiegand

The KR Series is the main accessories line of external wiegand readers for all our access control devices.

With an elegant and robust design, they are easy to connect and install, and offer the possibility to control one door from both sides. The LED lights indicate allowed or denied access. They have a proximity reading range of up from 2cm to 8cm. They include LEGIC SM4200 chip which offers compatibility with multiple proximity cards like 13,56 MHz ISO14443A, ICODE, TI-Tagit, Sony Felica, HID iClass and much more. The fact that this series is waterproof, and the operating temperatures can range from -20º to +65º, it is the ideal solution for outdoor installation. Also they can be connected with our C3 controllers.

  • 13,56 MHz ISO14443A card readers.
  • Read range: from 2CM to 8CM.
  • Wiegand 34 by default.
  • External LED and Buzzer control.
  • Indoor/Outdoor operation (Waterproof)
  • Reverse Polarity Protection.
  • LEGIC SM4200 Chip.
  • Card-Reading Type: 13,56 MHz ISO14443A, ICODE, TI-Tagit, SONY Felica, HID iClass, INSIDE Contactless
  • ISO-14443A, ISO-14443B and ISO-15693.
Model KR501 EL
Read Range 2CM to 8CM
Reading time ( Card ) =<200ms
Power DC 7-16V / Max.110mA
Input Port 2ea (External LED Control, External Buzzer Control)
Output Card Format 34bits Wiegand (Default)
LED indicator 2 Color LED Indicators (Red and Green)
Beeper Yes
Operating temperature -20° to +65°C
Operating Humidity 10% to 90% (relative humidity non-considered)
Color Black and Grey
Material ABS+PC with texture
Dimension: (WxHxD) mm 86x86x16
Weight 110g
Index of Protection IP65
