F18
- TFT Color Screen
- Full Slim and Elegant Design
- Access Control Features
- New Firmware
- Easy Installation and Connectivity
- New Platform

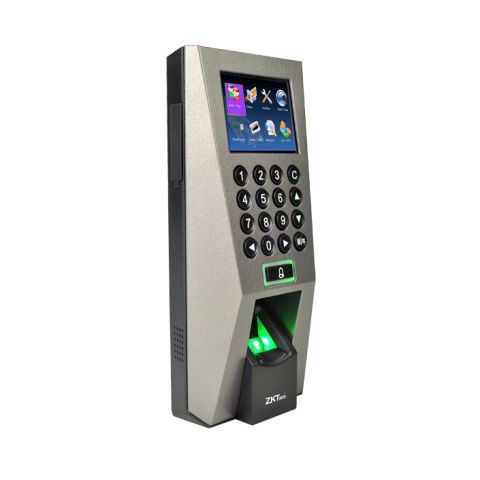

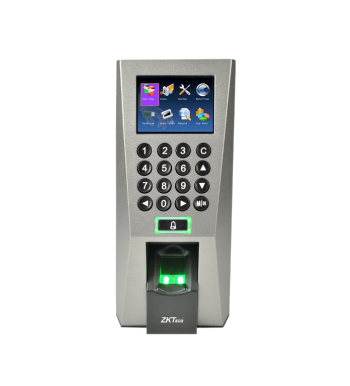

F18 is an innovative biometric fingerprint reader for access control application. With high-performance firmware functions and compact design, it has become one of ZKTeco’s most popular devices. It is applied with ZKTeco’s latest firmware with user-friendly UI and flexible user privilege settings for multi-level management. The new hardware platform uses ZMM210 core-board with 1.2Ghz CPU. With optimization of both hardware platform and firmware, the new f18 is able to verify fingerprints with even higher efficiency. The device offers flexibility of both standalone installation and installation with any third-party access control panels which support standard Wiegand signal. TCP/IP and RS485 are also available which enable F18 to be applied in different network.
- 1 touch a-second user recognition
- Fingerprint reader with durable and highly accurate ZK optical sensor
- Stores 3000 templates, 5,000 CARDS and 30,000 transactions
- Reads Fingerprint and/or CARD
- OPTIONAL integrated smart CARD reader
- Built-in Serial and Ethernet ports
- Tamper-proofs switch and alarm outputs
- Request-to-exit and alarm contacts
- Audio-Visual indications for acceptance and rejection of valid/invalid fingers
Fingerprint Capacity |
3000 Templates |
Transaction Capacity |
30,000 Transactions |
Sensor |
ZK Optical Sensor |
Algorithm Version |
ZK Finger VX9.0&10.0 |
Communication |
RS232/485, TCP/IP, USB-host |

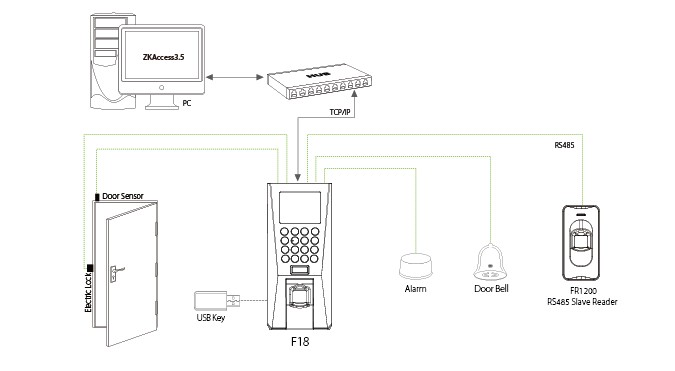

Access Control Interface |
3rd Party Electric Lock, Door Sensor, Exit Button, Alarm, Doorbell |
Wiegand Signal |
Input and Output |
Display |
TFT LCD Color Screen |
Interface Styles |
Common, Matrix and Magic styles |
Standard Function |
Webserver, Anti-passback |
Optional Function |
ID Card, Mifare Card |
Power Supply |
12V DC,3A |
Operating Temperature |
0 °C- 45 °C |
Operating Humidity |
20%-80% |
Dimension(WxDxH) |
80×183×42mm |
